As a 2025 model, this may be on an incoming delivery, so stock shown may be delayed. Call us to check!
ACE FOIL
The Ace Foil features the iconic pin-tail design for efficient takeoff and tracking downwind. The outline is designed to resemble nature’s most streamline possible shape, a teardrop; and the slightly recessed standing area gives the rider a flat, stable, and more connected feel over the foil.
In addition to being a phenominal SUP downwinding board, the Ace Foil is a fantastic crossover range excelling in light wind wingfoiling conditions, as well genertaing easy glibe to early lift SUP foil surfing mode. We conductued multiple multiple testing trips across Thailand, Australia, USA and Tenerife and optimised this model to use both with wing and paddle.
AVAILABLE IN TWO OPTIONS: WITH & WITHOUT INSERTS

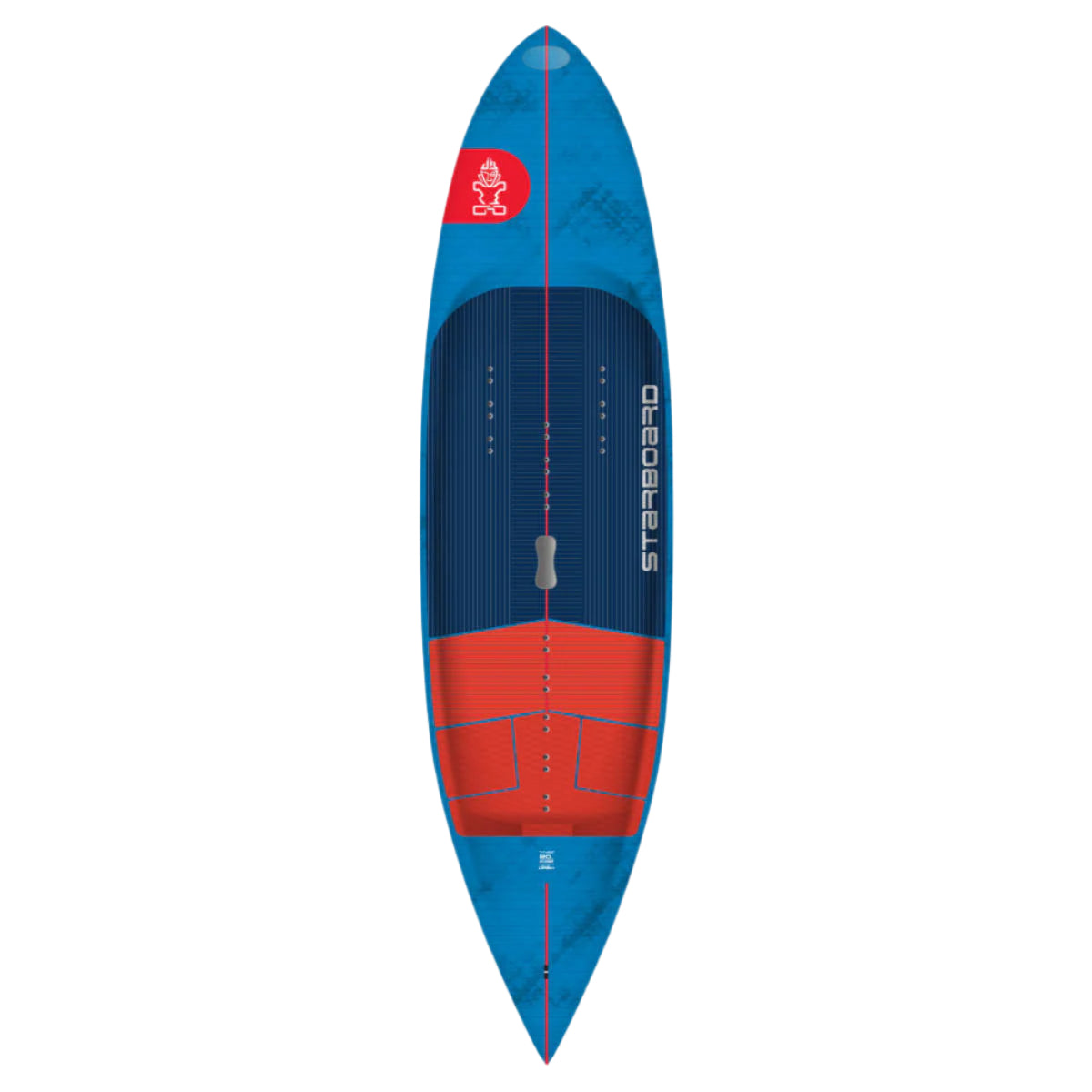

> ACE FOIL WITH FOOTSTRAP INSERTS: This is the preferred option for a wingfoil crossover board, perfect for riders seeking ultimate control and stability. Equipped with front & rear footstrap inserts.

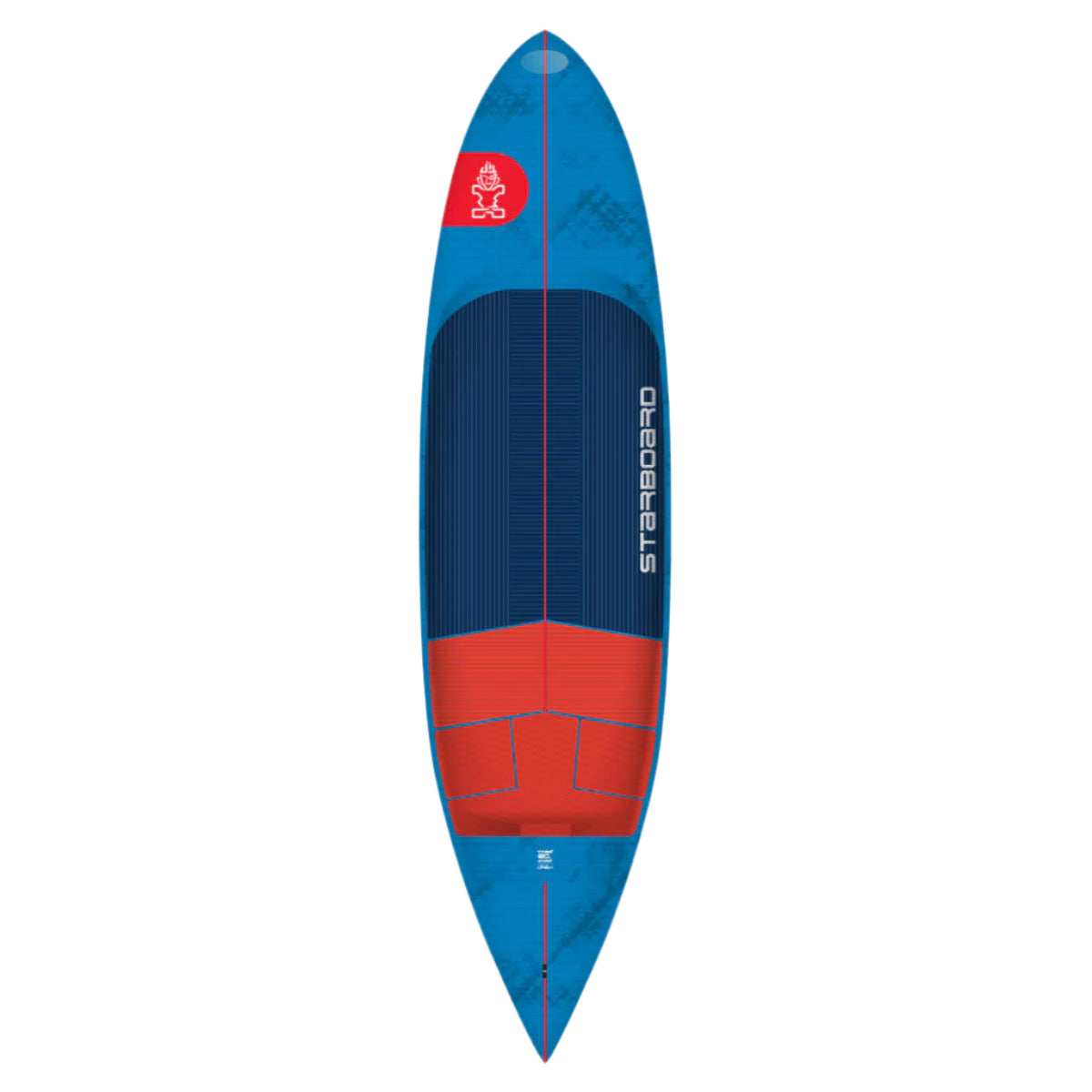

> ACE FOIL WITHOUT FOOTSTRAP INSERTS: For those craving efficiency and speed, the strapless version offers a lighter-weight design without footstrap inserts and handle. With up to 18% reduced weight saving, you experience effortless gliding and improved take off in SUP downwinding, allowing you to push the limits even further.
KEY FEATURES -
> Ace outline - The teardrop outline is the most efficient outline, offering even volume and a stable shape.
> Narrow width - Designed for speed downwind and early takeoff. The aim of the Ace Foil is to offer a super-fast accelerating board to quickly catch bumps and accelerate quickly onto foil. The Ace Foil model is available in narrow sizes from 19″ up to 23″.
> Pin tail - Tracking and efficiency are two key aspects of the pintail design. The pin tail offers great tracking for catching bumps, while the pin tail also brings the water back together, allowing a more efficient takeoff and touchdown with less board touching the water.
> Boxy rails - Allows for reduced overall width whilst maintaining even volume distribution, for improved stability and handling. This gives the board even more pop when getting up.
> Parallel mid-section - Improves straight line tracking, making it very predictable when paddling in and getting going.
> Rocker - The rocker is fine-tuned for speed, spring, and larger bumps. The rockerline has been tested in a range of conditions, from flatwater to large ocean swell.
> 16" Foil box - With many iterations of downwind foils hitting the market, the 16″ foil box caters to any foil preference. This downwind model features a “further forward” box for fine-tuned and comfortable downwind foiling.
WHAT SIZE TO GO FOR?
> 7’10” x 23” / 140 L ACE FOIL - Our largest Ace Foil offers excellent float, stability while still being a shorter size for maneuverability in downwind and sup foil. Length: 7’10” / 239 cm
Width: 23″ / 58 cm
> 7’4″ x 21.5″ / 120 L ACE FOIL - Amazingly easy SUP Downwind, wing and surf foil model; at 120L, this Ace Foil suits a range of riders up to 100kg. The short length gives this Ace Foil excellent maneuverability and offers generous width. Length: 7’4” / 224 cm
Width: 21.5″ / 55 cm
> 7’0” x 20” / 100 L ACE FOIL - The 7’0” x 20” is our most popular AceFoil model. This model is maneuverable in downwinding, excellent for SUP foil surfing and light wind winging. Featuring a comfortable 20” width, compact design and 14” foil box. Length: 7’0″ / 213 cm
Width: 20″ / 51 cm
> 6’9” x 19” / 85 L ACE FOIL - The 6’9” x 19” AceFoil is our smallest and most maneuverable model, designed for carving turns and an excellent downwind crossover model for winging and SUP foil surf sup for riders up to 80kg. Length: 6’9″ / 206 cm
Width: 19″ / 48 cm
BLUE CARBON FOILBOARD TECHNOLOGY LIGHTWEIGHT, STRONG AND DURABLE Experience the lightest, stiffest, and strongest technology to get you flying faster and for longer.
› Get flying faster with a lighter board Using top-grade 150g Biaxial Carbon, the board is significantly lighter yet incredibly strong and stiff. A custom process creates a double stringer, boosting breakage strength and stiffness.
› Reinforced standing area High-density PVC in the standing area enhances durability and prevents heel dents.
› Maximum stiffness and rigidity Lightweight biaxial carbon fiber on the deck and bottom ensures stiffness and rigidity. An arrow-shaped PVC stringer provides extra breakage strength and stiffness over the foil, essential for long, narrow shapes.
Model
7'10" x 23" ACE FOIL
7'4" x 21.5" ACE FOIL
7'0" x 20" ACE FOIL
6'9" x 19" ACE FOIL
Rider Weight
Up to 120 kg
Up to 110 kg
Up to 90 kg
Up to 80 kg
Length
7'10" / 239 cm
7'4" / 224 cm
7'0" / 213 cm
6'9" / 206 cm
Width
23" / 58 cm
21.5" / 55 cm
20" / 51 cm
19" / 48 cm
Thickness
6.5" / 16.5 cm
6.3" / 16 cm
6.3" / 16 cm
6.3" / 16 cm
Tail Width
14.6” / 37.1 cm
13.8” / 35.1 cm
12.6” / 32.1 cm
17.0” / 43.0 cm
Volume
140 L
120 L
100 L
85 L
Foil box
2X 16" US Box
2X 16" US Box
2X 16" US Box
2X 16" US Box
Weight
With footstrap insert: 7.38 kg (Est.) Without footstrap insert: 6.93 kg (Est.)
With footstrap insert: 7.13 kg (Est.) Without footstrap insert: 6.45 kg (Est.)
With footstrap insert: 6.45 kg (Est.) Without footstrap insert: 5.68 kg (Est.)
With footstrap insert: 5.96 kg (Est.) Without footstrap insert: 5.3 kg (Est.)
