NOTE: Online Exclusive - call before buying to check times   F-ONE Mirage Carbon Wings Fun, designed for carving and really versatile, the Mirage foils will transform your kitefoiling experience....
£1,615.00

NOTE: Online Exclusive - call before buying to check times

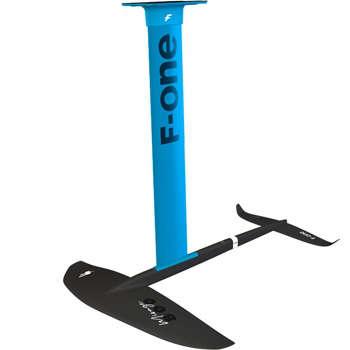

F-ONE Mirage Carbon Wings

Fun, designed for carving and really versatile, the Mirage foils will transform your kitefoiling experience.

  • Great Carving
  • Rail to Rail Surf Feeling
  • Huge speed range
  • Monobloc Carbon ConstructionEasier than ever



Foiling has unleashed a fantastic riding potential in light wind but it has also proven to be a fanstastic support to carve some lines on flat water or small waves alike. Imagine a foil that is stable and lifts you at low speed so you can succeed all your transitions or tricks, a foil that glides and can accelerate so you can race you mates for short moment, before you bank on a nice wave to lay a perfect turn. This foil is the Mirage foil.

Built using the Monobloc construction with pre-preg carbon, those foils are both very light and really strong. This set-up offers better load transmission and better stiffness throughout the different parts for maximum control. The Titan connection allows to plug both an aluminium or carbon mast and the fuselage is split in two parts to facilitate transportation.

The Mirage wings are recommended with the C220 Surf stab. This stabilizer offers fantastic glide and great carving potential. Fast and agile it will serve perfectly the Mirage wings with effortless turns and thrilling accelerations.



TECHNOLOGY -

> Titan connection: enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically friendly and very easy to use, assemble and disassemble.

> Pre-preg: with pre-preg fabrics, the carbon fibre is directly impregnated with epoxy resin by its manufacturer; this guarantees a perfect ratio between epoxy and carbon, and represents the highest quality process.
Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fibre.

> Monobloc structure: having a stiff and solid assembly between all the parts of the foil, is key to making it perform at its best as well as easy to handle.
The connection of the front wing with the fuselage is highly stressed and loaded, it is one of the critical areas of the assembly in terms of structure.
The Monobloc wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.
The structural fibres of the fuselage are spread into the wing to achieve the most natural, sound and light connection.
It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders' input.
When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.



COMPONENTS -

> Mirage Carbon front wing: fun, designed for carving and really versatile, the Mirage foils will transform your kitefoiling experience.
Built using Monobloc construction with pre-preg carbon, those foils are both very light and really strong. This set-up offers better load transmission and better stiffness throughout the different parts for maximum control. The Titan connection allows to plug both an aluminium or carbon mast and the fuselage is split in two parts to facilitate transportation.
The Mirage wings are recommended with the C220 Surf stab.

> Alu mast 45>95cm: can be used for all disciplines; kite, surf, stand up paddle, wing and windsurf. The profile is extruded with precision from 6063 aluminium block.
The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down.
It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.
The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm).
A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
Recommended sizes
45>95 KITE FOIL
55>75 SURF/ SUP FOIL
65>75 WING FOIL
75>85 WIND FOIL

> Carbon mast 75>105cm: a true masterpiece of composite craftsmanship and design, the F-One carbon mast was designed to transform your foiling experience by a significant improvement of the glide and a dramatic weight reduction matched with impressive rigidity.
Available in 75cm, 85cm and 105cm, the F-One carbon mast is ready for all disciplines; surf, wing, kite, SUP. It features a 4-bolt plate at the top (hole spacing: 160x90mm) and an integrated Titan mast foot at the bottom. It can be connected to virtually all boards on the market featuring the twin track system and can receive all the wings and fuselage that feature the Titan connection slot.
Chord: 12cm, Profile thickness: 1.45cm, Weight: 1.4kg, 1.52kg, 1.81kg
Recommended sizes
75>105 KITE FOIL
75 SURF/ SUP FOIL/ WING FOIL

> Stab C300 V2: versatile and progressive, the C300 stabilizer can be combined with any front wings and fits a very large range of practices.
Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
Built in pre-preg carbon and designed to be securely mounted on F-One fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling manoeuvres in more easily.
Early lift and great stability; perfect control at all time; works for kite, SUP, wind foiling!

> Titan mast foot: the connecting part that makes the F-One aluminium masts compatible with all Titan fuselages and wings.
It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the Titan mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.



THE SIZES -

800 - 80% take off, 75% stability, 100% carving, 85% performance

Area: 800 cm²
Span: 62 cm
Aspect Ratio: 4.8
Weight: 0.900 kg (wing only)



1000 - 95% take off, 80% stability, 100% carving, 70% performance

Area: 1000 cm²
Span: 66 cm
Aspect Ratio: 4.4
Weight: 0.970 kg (wing only)







Note: purchase is of foil plane pack (front wing, stabiliser and fuselage) + mast choice (carbon masts include top plate and titan mast foot) (aluminium masts require titan mast foot + top plate - we add to package price) to create complete foil setup.



If you wish to purchase additional/ and or separate components, please give us a call as this is possible on 01202 700503
